Product Description

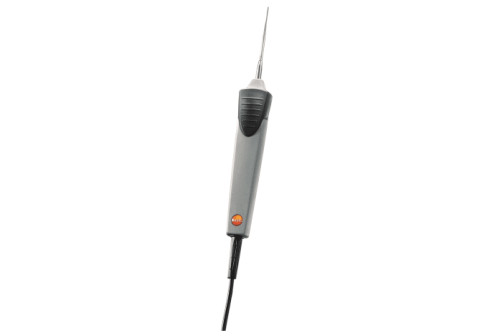

Waterproof standard immersion/penetration probe, T/C Type T
Description
Delivery Scope
Waterproof standard immersion/penetration probe (TC type T) with 1.2 m fixed cable.
Your advantages
-
Thermocouple type T
-
Measuring range: -50 to +350 °C
-
Waterproof
-
EN 13485 and HACCP-compliant
Waterproof standard immersion/penetration probe, T/C Type T
Technical data
Temperature - TC Type T (Cu-CuNi)
| Measuring range |
-58.0° to 662.0 °F / -50 to +350 °C
|
|---|---|
| Accuracy |
±0.4 °F (-4° to +158 °F) / ±0.2 °C (-20 to +70 °C)
Class 1 (Remaining Range) ¹⁾
|
| Reaction time |
7 sec
|
| 1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +350 °C (Type T). | |
General technical data
| Weight |
4 oz. / 112 g
|
|---|---|
| Dimensions |
53 in. / 1350 mm
|
| Length probe shaft tip |
1.969 in. / 50 mm
|
| Diameter probe shaft |
0.197 in. / 5 mm
|
| Diameter probe shaft tip |
0.157 in. / 4 mm
|
| Cable length |
3.937 ft. / 1.2 m
|
| Fixed cable |
yes
|
| Protection class |
IP65
|
| Housing |
ABS / TPE / PUR
|
| Length probe shaft |
4.528 in. / 115 mm
|
| Product colour |
grey; silver; white
|
