The Energy Conservatory Digital TrueFlow Solution - Full Kit - TFD-KIT-001
(Grid, DG-8 Digital Gauge (Manometer), 8 Adapters)
The all new Digital TrueFlow Air Handler Flow Meter provides a simple and accurate measurement of airflow through residential air handlers. The Digital TrueFlow Meter temporarily replaces the filter in the air handler distribution system during the airflow measurement process using a pre-cut or cut-to-fit adapter plate. If the filter location is directly adjacent to the air handler, the TrueFlow Meter will measure the total air handler flow. If the filter is located remotely at a central return, the TrueFlow Meter will measure airflow through the central return. TrueFlow Air Handler Flow Meter Easy and fast to use in the field. The TrueFlow Meter provides direct CFM readings in 2 to 3 minutes without extensive calculations or setup. Can be used in a wide range of return plenums and air handler fan configurations. Proven to be more accurate than the single-point temperature rise method and easier than the fan curve method.
The new Digital TrueFlow features a built-in pressure gauge to allow wireless readings without the need to physically attach any tubing to the unit itself. Use your Android or iOS device to wirelessly control the Digital TrueFlow and DG-8 with the TrueFlow HVAC app and create detailed system reports. With the Digital TrueFlow Solution, it has never been easier to get it right!

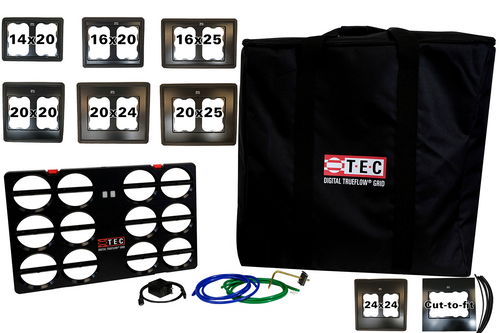

The Digital TrueFlow Solution Full Kit includes:
- Digital TrueFlow Grid
- Digital TrueFlow Carrying Case
- Zippered gauge sleeve
- Accessory carrying case
- USB 2.0 Type C cable (3 feet/1 meter)
- USB Type C power adapter
- Magnetic static pressure probe
- Static pressure probe hole plugs
- 5’ blue hose
- 5’ green hose
- Inline hose connector
- 14x20 adapter plate
- 16x20 adapter plate
- 16x25 adapter plate
- 20x20 adapter plate
- 20x24 adapter plate
- 20x25 adapter plate
- 24x24 adapter plate
- Cut-to-fit universal adapter plate, maximum size 25x25
Digital TrueFlow Grid Full Kit Specifications:
Flow Accuracy: +/- 5% ¹
Digital Communication: Bluetooth® low energy, USB 2.0
Flow Range, CFM (Cubic Feet per Minute): 300 to 1600 CFM
Power: 2,000 mAh lithium-ion polymer rechargeable battery with USB-C charger/power adapter
Battery Life: Typically over 24 hours
Auto-off: 30 minutes
Grid Dimensions: 18 inch width x 12 inch height x 0.75 inch depth
Grid Weight: 2.1 LBS
Recommended Calibration Interval: 48 months
Operating Temperature Range: 32°F to 115°F (0°C to 45°C)
Storage Temperature Range²
Less than one month: 15°F to 115°F (-10°C to 45°C)
One month to one year: 32°F to 77°F (0°C to 25°C)
¹ In standard installation with no obstruction 2 inches downstream and 6 inches upstream of Digital TrueFlow Grid.
² Storage limits are based on batteries. Storing outside these limits may require battery replacement.
DG-8 Specifications:
Number of Independent Pressure Channels
- One
Digital Communication
- Bluetooth Low Energy
- USB 2.0 over USB-C® connection
Accuracy
- 0.9% of pressure reading or 0.00048 in. H2O (0.12 Pa), whichever is greater
Display Resolution
- 0.001 in. H2O 0.1 Pa for readings up to 999.9 Pa
- 1 Pa for readings over 1000 Pa
Pressure Range
- -10 to +10 in. H2O (-2,500 to +2 ,500 Pa)
Units of Measure
- Pa
- in. H2O
Display
- 2-inch diagonal
- 320 x 240 pixels
- Backlit color TFT LCD
Power
- Lithium-Ion Polymer Rechargeable Battery 2,000 mAh
- USB-C® charger/power adapter included
Battery Life
- Typically over 22 hours of continous use
Auto-off
- 30 minutes
Dimensions
- 4.84 x 2.39 x 1.02 inches (123 x 61 x 26 mm)
Weight
- 6.4 oz (182 g)
Recommended Calibration Interval
- 24 months
Operating Temperature Range
- 32° F to 115° F (0° C to 45° C)
Storage Temperature Range
- Less than one month: 15° F to 115° F (-10° C to 45° C)
- One month up to one year: 32° F to 77° F (0° C to 25° C
(1) Typical Conditions are a temperature range of 54° to 90° F, and a two year calibration interval.
(2) As Calibrated Accuracy is +/- (0.4% of reading + 0.045 Pa) under controlled conditions of 67° to 77° F, four month calibration interval, and pressure readings averaged for five seconds. All gauges are verified to meet this specification at all calibration pressures.
(3) For use at temperature conditions outside the typical conditions in Note 1, or the as-calibrated range in Note 2, add an additional 0.037% of pressure reading per degree F over the stated range.
(4) Storage limits are based on batteries. Storing outside these limits may require battery replacement.
