Product Description

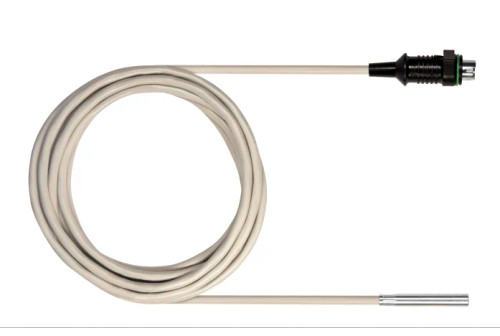

Temperature probe with stainless steel sleeve
Description
The temperature probe features an acid-resistant, stainless steel sleeve and is suitable for measurements in the food industry.
With its 1.9 m cable, the temperature probe with stainless steel sleeve can also be used at measuring locations which are not in close proximity to the Wi-Fi data logger.
This Type K, Class 2 thermocouple probe has a standardized accuracy of 4.5 (±2.5 °C).
This probe's response time t99 (time it takes for the probe to register 99% of the jump in temperature) of 20 seconds refers to measurements in moving water at 140 °F (+60 °C). This response time is extended when, for example, measurements are taken in still liquid, pastes or in air.*
The perfect probe for any application
Don't see the temperature probe you are looking for? Please contact us directly. We have a large range of standard temperature probes and we also manufacture customized probes specifically according to your personal requirements.
* For air temperature measurements, the response time is about 40 – 60 times higher than the indicated value measured in water. If you should require a rather sluggish temperature probe to measure air temperature, this probe is particularly suitable because it does not take brief temperature peaks into account at all, or only to a very small degree, when measuring temperature. For example, if you are planning to use the temperature probe with penetration tip to measure air temperature in the refrigerator, briefly opening the refrigerator door would not take into account the temperature fluctuation which results from mixing the warm room temperature with the refrigerator temperature.
If you need an air temperature probe with a fast response time, your best choice would be the exceptionally fast temperature probe 0602 0493 which has a large measuring range.
Delivery Scope
1 x TC Type K temperature probe with stainless steel sleeve 0628 7533, can be connected to the testo Saveris 2-T3 Wi-Fi data logger
Your advantages
-
TC Type K temperature probe with stainless steel sleeve and 1.9 m cable
-
Temperature measurement in liquids, pastes and also in air
-
Measuring range: -58 to 401 °F (-50 to +205 °C)
Temperature probe with stainless steel sleeve for measurements in liquids, pastes and also in air
Technical data
Temperature - Type K TC
| Measuring range |
-58.0° to 401.0 °F / -50 to +205 °C
|
|---|---|
| Accuracy |
Class 2 ¹⁾
|
| Reaction time |
20 sec
|
| 1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K). | |
General technical data
| Diameter probe shaft |
0.236 in. / 6 mm
|
|---|---|
| Cable length |
6.234 ft. / 1.9 m
|
| Fixed cable |
yes
|
| Housing |
Stainless steel
|
| Length probe shaft |
1.575 in. / 40 mm
|
| Product colour |
silver; Black; green
|
