Product Description

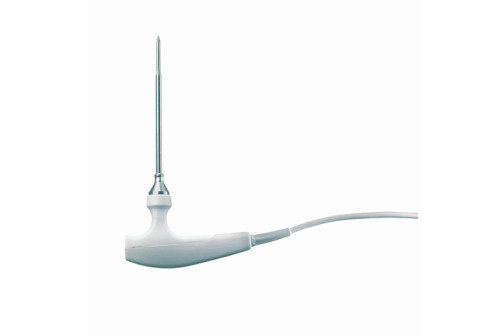

Robust food penetration probe with special handle, IP 65 - Robust food penetration probe
Description
Delivery Scope
Robust food penetration probe (TC type T) with fixed 1.5 m cable.
Your advantages
-
Thermocouple type T
-
EN 13485 and HACCP-compliant
-
Measuring range: -50 to +350 °C
-
With special handle, reinforced cable (PVC)
Robust food penetration probe with special handle, IP 65, reinforced cable (PUR) and reinforced protection from buckling
Technical data
Temperature - TC Type T (Cu-CuNi)
| Measuring range |
-58.0° to 662.0 °F / -50 to +350 °C
|
|---|---|
| Accuracy |
±0.4 °F (-4.0° to 158.0 °F) / ±0.2 °C (-20 to +70 °C)
Class 1 (Remaining Range) ¹⁾
|
| Reaction time |
6 sec
|
| 1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +350 °C (Type T). | |
General technical data
| Weight |
4.80 oz. / 136 g
|
|---|---|
| Dimensions |
53 in. / 1350 mm
|
| Length probe shaft tip |
1.181 in. / 30 mm
|
| Diameter probe shaft |
0.197 in. / 5 mm
|
| Diameter probe shaft tip |
0.146 in. / 3.7 mm
|
| Cable length |
4.921 ft. / 1.5 m
|
| Fixed cable |
yes
|
| Protection class |
IP65
|
| Housing |
Stainless steel / GFK
|
| Length probe shaft |
4.528 in. / 115 mm
|
| Product colour |
silver; white
|
