Product Description
Protimeter BLD4755-KIT New Flooring Kit With All Parts Except the Meter
Click Here for Protimeter Accessories
The MMS2 Flooring Kit (Kit Only. No MMS2 Meter Included)
Unrivaled Moisture Testing for Concrete Floor Slabs
Introducing the Protimeter Flooring kit. A new kit with the most innovative humidity sleeves system available.
The new Protimeter Flooring kit has been developed to meet the ASTM F2170-11 standard for in situ humidity test in concrete. The new patent pending adjustable sleeves allow the user to make measurements in 4” to 6” concrete slabs without the need for cutting the sleeves. Mini Hygrostick sensors are reusable making this the most cost effective system available.
Kit Contents:
- Short humidity quickstick (POL8751)
- Pin calibration check (BLD5086)
- Software & cable (BLD7758)
- 5 Mini Hygrosticks with NIST cert (BLD4755-5)

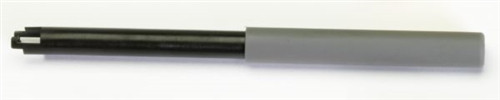

- Mini Hygrostick extraction tool (BLD4755-EX)
- Mini Hygrostick extention lead (BLD5806)
- 20 adjustable humidity sleeves (BLD4650-20)
- 3/4 concrete drill bit (BLD34DR)
- Drill stop (BLD34DRCLR)
- Hex L key, 5/32 inch (BLD34DRCLR-K)
- Wire hole brush (BLD4653)
- Salt calibration check adapter (BLD4790-AD)
- 75% salts test bottle (BLD4790)
- Adapter for salts bottle (BLD4790-AD)
- Rugged carrying case (BLD5916)
The MMS2 Flooring Kit (**PLEASE NOTE!**) This Is The Kit Only. No MMS2 Meter Included.
- Ambient relative Humidity and temperature measurement.
- Equilibrium humidity measurement in concrete floors.
Measurements Include:
- In situ relative humidity and temperature - required for ASTM F2170 standard.
- Relative humidity and temperature in the ambient conditions - required for ASTM F2170 standard.
The MMS2 Flooring Kit (**PLEASE NOTE!**) This Is The Kit Only. No MMS2 Meter Included.
Protimeter MMS2 Flooring Kit Data Sheet
Protimeter MMS2 Flooring Kit Humidity Sleeve Instructions
Protimeter MMS2 User Manual
Protimeter MMS2 Quick Guide
The MMS2 Flooring Kit (**PLEASE NOTE!**) This Is The Kit Only. No MMS2 Meter Included.
Hygrostick Data (Nominal) | 30% to 40% RH (3% RH) at 68°F (20°C), 41% to 98% RH (2%) at 68°F (20°C), Range 32°F to 122°F (0°C to 50°C) 0.6°F (0.3°C) |
---|---|
Quickstick Data (Nominal) | 0% to 10% RH, 3% RH at 68°F (20°C), 10% to 90% RH, 2% RH at 68°F (20°C), 90% to 100% RH, 3% RH at 68°F (20°C), Range 32°F to 122°F (0°C to 50°C) 0.6°F (0.3°C) Nominal response 30% to 90% and back to 30% RH in 45 seconds @ 68°F (20°C) |
