    Product Description

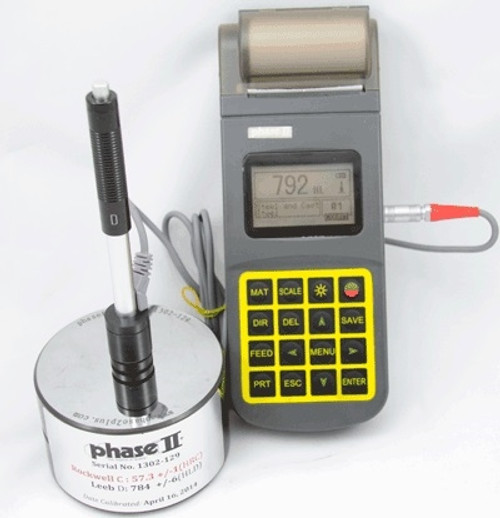

    Phase II Portable Hardness Tester For cast/rough parts PHT-1850

    State of the art, digital portable hardness tester is designed to test the hardness of cast,and large hard metal parts with rough surfaces. Loaded with useful functions only found on high priced models the PHT-1850 portable hardness tester is clearly setting a new industry standard by being the most accurate, economically priced portable hardness tester on the market today. Fast test speeds coupled with memory and output, this unit is a hand’s down winner whether you are out in the field or in the QC shop.

    Operation:

    • Load the impact body
    • Place the impact body on your test piece
    • Push the button to begin testing and obtain reading

    Standard Accessories: •

    • Base instrument
    • Impact device G
    • Calibrated test block
    • Custom carry case
    • Cleaning brush
    • Operation manual

    Optional accessories:

    • Impact devices; DC, D+15, DL, G, C
    • Special support rings
    • Mini Printer

    Functions:
    • Easy to use keypad operation
    • Auto identification of Impact Device
    • Large LCD display with back light
    • USB Ouput
    • Automatic conversions to: Brinell, Rockwell B & C, Vickers and Shore
    • Automatic mean value as well as Min & Max values
    • Battery Indicator
    • Memory capacity (100 groups)

    Specifications:
    • Accuracy: +/- 0.5% (referred to L=800,
    • Repeatability accuracy: +/- 4L units) L=Leeb
    • Measuring range: 200-960 HL
    • Materials: steel & cast steel, alloy tool steel, stainless steel, grey cast iron,
    • spheroidal iron, cast aluminum, brass, bronze, wrought copper alloy.
    • Battery type: AA alkaline (4)
    • Operating temperature: 5-104 degrees F
    • Dimensions: 150 x 74 x 32mm
    • Weight: 245 grams


    Impact device ->

    G

    Impact energy

    90Nmm

    Mass of the impact body

    20g


    Test tip



    * Hardness

    1600HV

    * Diameter

    5mm

    * Material

    Tungsten Carbide


    Impact device



    * Diameter

    30mm

    * Length

    254mm

    * Weight

    250g

    Max. hardness of sample

    650HB

    Preparation of surface



    * Max. roughness depth Rt

    30 m m

    * Average roughness Ra

    6.3 m m

    Min. weight of sample



    * Of compact shape

    15kg

    * On solid support

    5kg

    * Coupled on plate

    0. 5kg

    Indentation of test tip



    With 300 HV



    * Diameter

    1.03mm

    * Depth

    53 m m

    with 600 HV



    * Diameter

    0. 90mm

    * Depth

    41 m m
