Product Description
Onset RX3000 4-channel Analog Module - RXMOD-A1
Overview

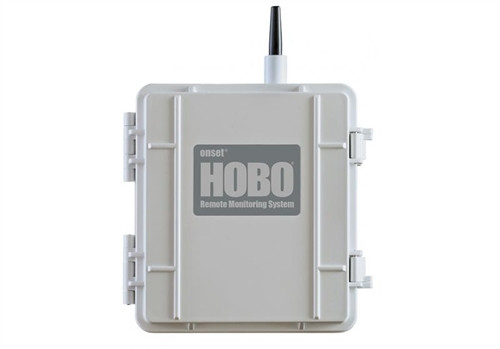

The optional analog module has four analog inputs that support excitation power, scaling, and statistics measurements. These four, single-ended sensor inputs are configured through HOBOlink. A HOBO RX3000 is required for this product.
Highlighted Features
- 15-bit resolution and high accuracy
- Each module can have its own logging rate
- Input ranges up to 33V
In what environment does this accessorie operate?
This accessorie operates in indoor and outdoor environments.
What measurements does this accessorie support?
The RXMOD-A1 accessorie supports the following measurements: 4-20mA, Air Velocity, Carbon Dioxide, Compressed Air Flow, DC Current, DC Voltage, Differential Pressure, Gauge Pressure, Kilowatts (kW) and Volatile Organic Comp.
To see the full specifications for this product, please see our product manual found under the documentation tab if available.
Input Channels | Four, single-ended, in addition to smart sensor data channels |
Measurement Range and Accuracy | 0–25.6 mA DC, ±5 µA ± 0.15% of reading |
Resolution | 15 bits |
Field Wiring | Two- or three-wire via screw terminals, 16–24 AWG |
Minimum/Maximum Input Voltage | 0/33 V DC |
Minimum/Maximum Input Current | 0/25.6 mA |
Minimum Source Impedance for Current Measurement | 20 K„¦ |
Excitation Voltage | 12 V DC ±5% at 200 mA maximum per module |
