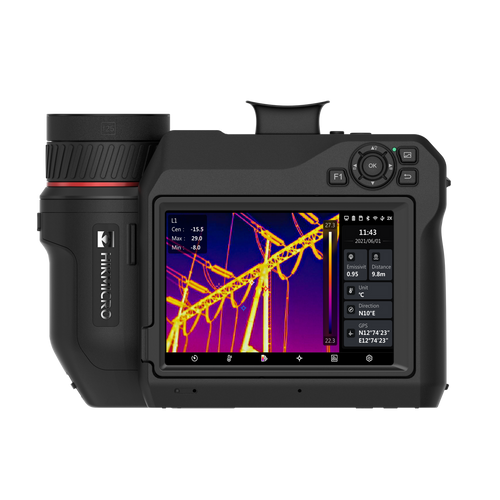

HIKMICRO SP60 Thermal Imaging Camera with 25 degree (1x) Lens, SP60-L25
HIKMICRO SP60 Thermal Imaging Camera with 640x480 (307,200 pixels) Thermal Resolution, SuperIR 1280x960, Articulating Design, 8 MP Visual, 64GB SD Card, 5" Touchscreen, WiFi, Dual Charger and 2 Batteries, 25 degree (1x) Lens
The HIKMICRO SP60 high-performance handheld thermal camera is ideal for industrial, predictive, oil and gas, and utility maintenance inspections. HIKMICRO SP60 has a high sensitivity (NETD < 30 mK) and high resolution (640 × 480) HIKMICRO VOx detector, and the temperature calibration is up to 650°C. This flexible and ergonomic thermal imager provides an electronic viewfinder and a 180° rotating lens, making long-day outdoor inspections easier. Advanced features help thermal imaging professionals to easily survey equipment and find signs of malfunction, such as GPS and compass annotations, continuous digital zoom, and 1-Tap level and span. Connect HIKMICRO Viewer App or HIKMICRO Analyzer software to transfer, analyze, and share pictures, and generate reports for free.
Key Features
- Thermal resolution: 640 × 480 (307,200 pixels), NETD: < 30 mK (@ 25°C, F# = 1.0)
- Temperature measurement range : -20°C to 650°C (-4°F to 1202°F)
- Accuracy: Max. (± 2°C/3.6°F, ± 2%)
- The 90° rotating screen and the 180° rotating lens design
- 1024 × 768 OLED electronic viewfinder and auto-brightness 5-inch color LCD display
- 1.0x to 12.0x continuous digital zoom
- Manual, automatic, and 1-Tap Level and Span
- GPS & compass annotation functions
- 25 Hz image frequency
- Up to 4 hours continuous running
Infrared Image
- IR Resolution: 640 × 480 (307, 200 pixels)
- Super Resolution: 1280 × 960 (1,228, 800 pixels)
- NETD: < 30 mK (@ 25°C, F# = 1.0)
- Image Frequency: 25 Hz
- Detector Pitch: 17 μm
- Spectral Range: 7.5 μm to 14 μm
- Focal Length: L8: 77.4 mm; L12: 51.4 mm; L25: 25 mm; L50: 12.6 mm
- F-number: L8: F1.2; L12: F1.1; L25: F1.0; L50: F1.0
- Field of View: (FOV) L8: 8° × 6°; L12: 12° × 9°; L25: 24.8° × 18.7°; L50: 50° × 37.3°
- Spatial Resolution: (IFOV) L8: 0.22 mrad; L12: 0.33 mrad; L25: 0.68 mrad; L50: 1.35 mrad
- Min. Focus Distance: L8: 2 m (6.56 ft); L12: 1 m (3.3 ft); L25: 0.2 m (0.65 ft); L50: 0.2 m (0.65 ft)
- Focus Mode: Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF
- Focus Speed: Approx. 1 second
Image Display
- Visual Camera: 3264 × 2448 (8 MP)
- Display: 1280 × 720 Resolution, 5" LCD Touch Screen
- Screen Brightness: Manual/Auto
- Viewfinder: 1024 × 768 pixels OLED
- Digital Zoom: 1.0x to 12.0x continuous
- Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
- Focus Mode Palette: Above/Below/Interval
- Color Alarm: Above/Below/Interval/Insulation
- Image Modes: Thermal/Visual/Fusion/PIP/Blending
Measurement and Analysis
- Object Temperature Range: -20°C to 650°C (-4°F to 1202°F)
- Accuracy: Max. (± 2°C/3.6°F, ± 2%)
- Measurement Tools: Center Spot, Hot Spot, Cold Spot; User-definable: 10 spots, 1 line, 5 rectangles, and 5 circles
- Level and Span Mode: Auto/Manual/1-Tap Touch-Screen
- Inspection Route: Yes
Data Storage and Communication
- Storage Media Removable 64 GB SD Card
- Image Storage Capacity Approx. 60,000 Images
- Annotations: Voice note: max. 60 seconds; Text note: max. 200 characters
- Video Storage Capacity: Approx. 64 hours
- Video File Format:MP4 video and radiometric video
General
- Wi-Fi: 802.11 b/g/n (2.4 GHz and 5 GHz)
- Bluetooth: Bluetooth 4.2
- USB Interface: USB Type-C
- HDMI Interface: HDMI-D
- Laser Distance Meter: Indoor distance: 50 m (164 ft): Outdoor distance: 10 m (33 ft).
- Laser: Yes, Class II, Wavelength: 635 nm; Power: < 1 mW
- LED Light: Yes
- GPS & Compass: Yes
- Battery Type: Interchangeable and rechargeable Li-ion battery
- Battery Operating Time: Approx. 4 hours
- Battery Charging Time: Approx. 2.5 hours fully charged
- Power Saving Mode: Yes
- Programmable Buttons: 2
- Protection Level: IP54, IEC 60529
- Drop Test Height: 1 m (3.28 ft), IEC 60068-2-31
- Safety: IEC 61010-1
- EMC: EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3
- Vibration: 2 g, IEC 60068-2-6
- Shock: 25 g, IEC 68-2-29
- Working Temperature Range: -20°C to 50°C (-4°F to 122°F)
- Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)
- Relative Humidity: < 95% non-condensing
- Weight: Approx. 1481 g (3.27 lb)
- Dimension: 204.7 mm × 153.6 mm × 87.8 mm (8.06" × 6.05" × 3.45")
- Tripod Mounting: UNC ¼”-20
